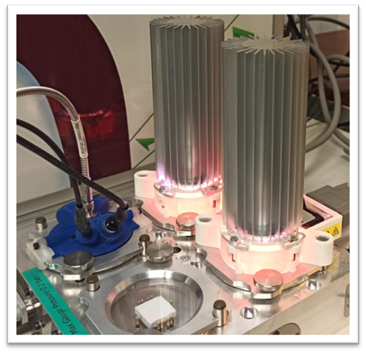

LED Soaker Systems¶
Product Line Overview¶
Below you will find the two models in this category.
Select a tab to view detailed specifications and technical information.
-
-
Specifications
Parameter Value Dimensions 52.5 x 52.5 x 70 cm Working Area 30 x 30 cm Max Power 1300 W Weight 50 kg LED Lines 4 independent -
Irradiance Performance
Parameter Value Spectrum Range 350-1100 nm Spectrum Class Class A (< ±15% of AM1.5G) Homogeneity Class Class A (10 cm radius) Class B 18 cm radius Stability Class Class A (< 2% after stabilization) -
Available LEDs
Line Peak (nm) UV 365 nm VIS Visible IR 730 + 850 + 940 nm FIR 800 + 1050 nm
-
Spectral Shape
-

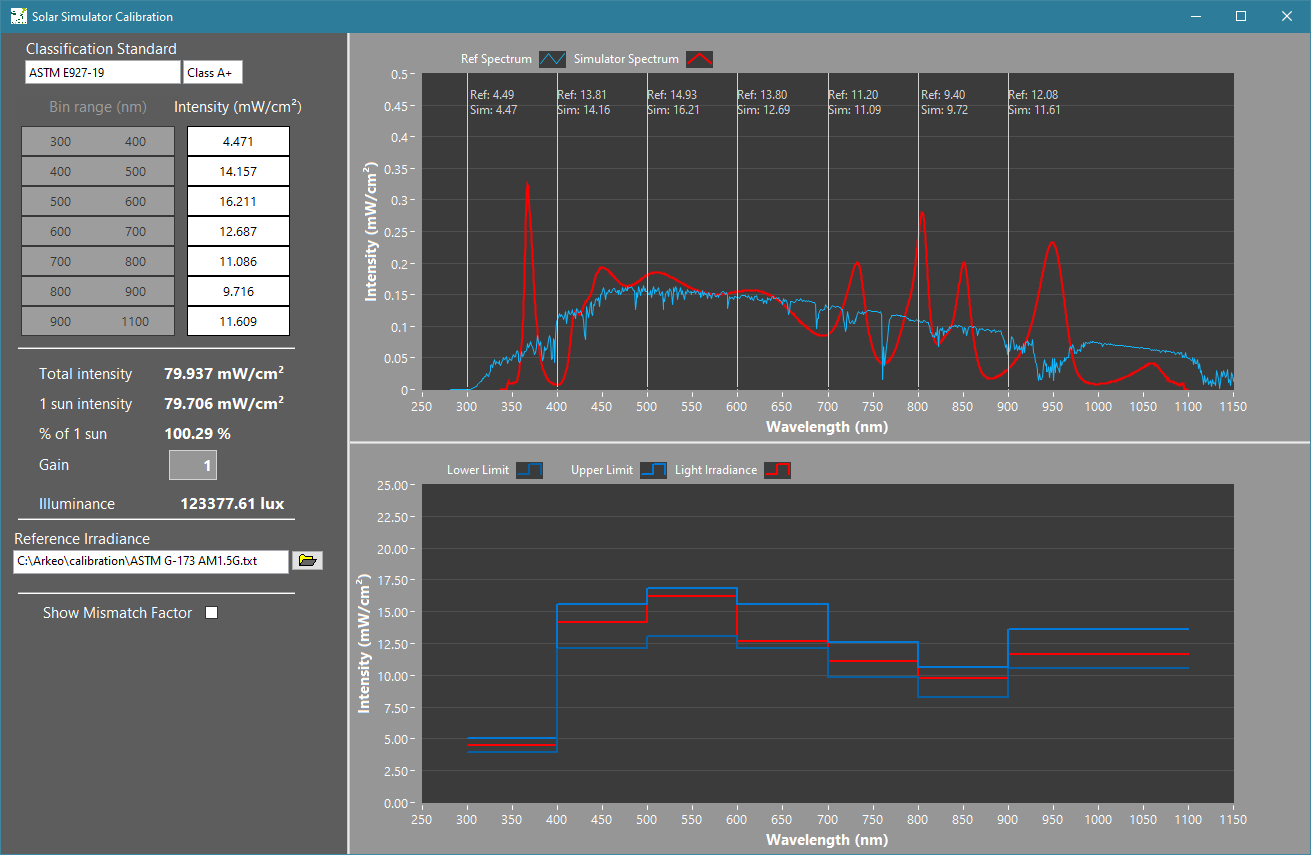

Spectral Classification
-

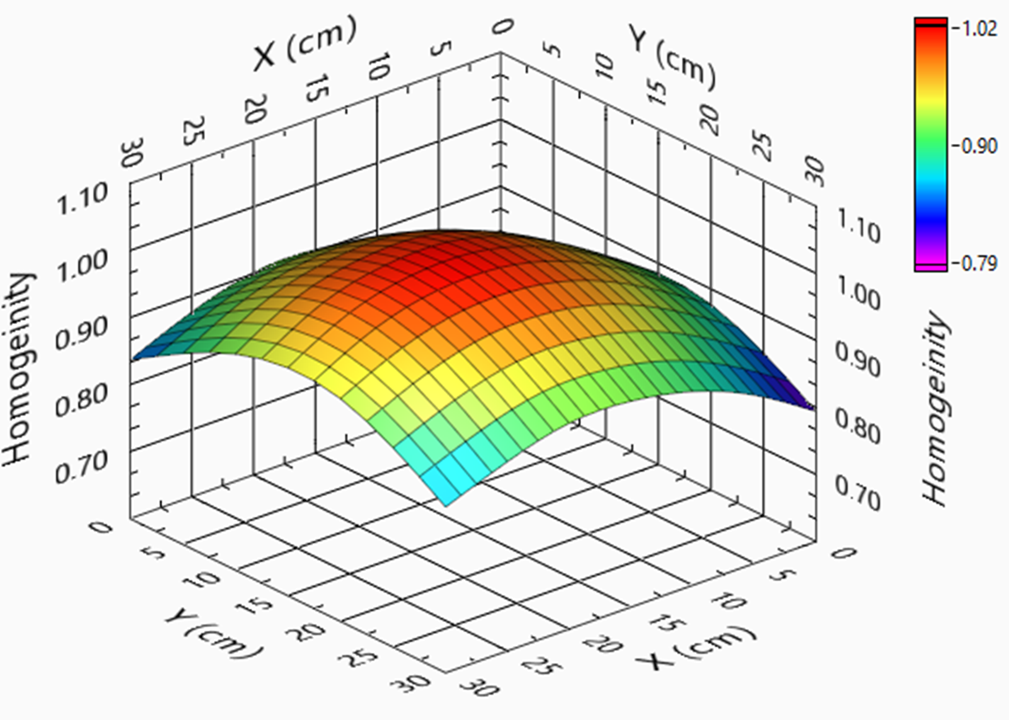

Homogeneity Map
-
-
Specifications
Parameter Value Dimensions 6 x 6 x 14 cm Working Area 2 x 2 cm Max Power 20 W Weight 0.4 kg LED Lines 12 independent -
Irradiance Performance
Parameter Value Spectrum Range 350-950 nm Spectrum Class Class A (< ±15% of AM1.5G) Homogeneity Class Depends on setup Stability Class Class A (< 2% after stabilization) -
Available LEDs
Line Peak (nm) Warm White Visible Cool White Visible Far UV 365 nm UV 385 nm Blue 455 nm Green 510 nm Amber 590 nm Red 625 nm Hyper Red 660 nm Far Red 730 nm IR 860 nm Far IR 940 nm
-

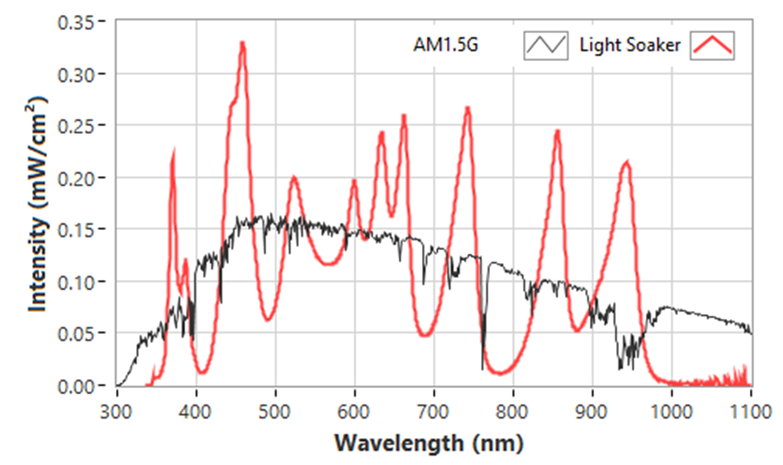

Spectral Shape
-

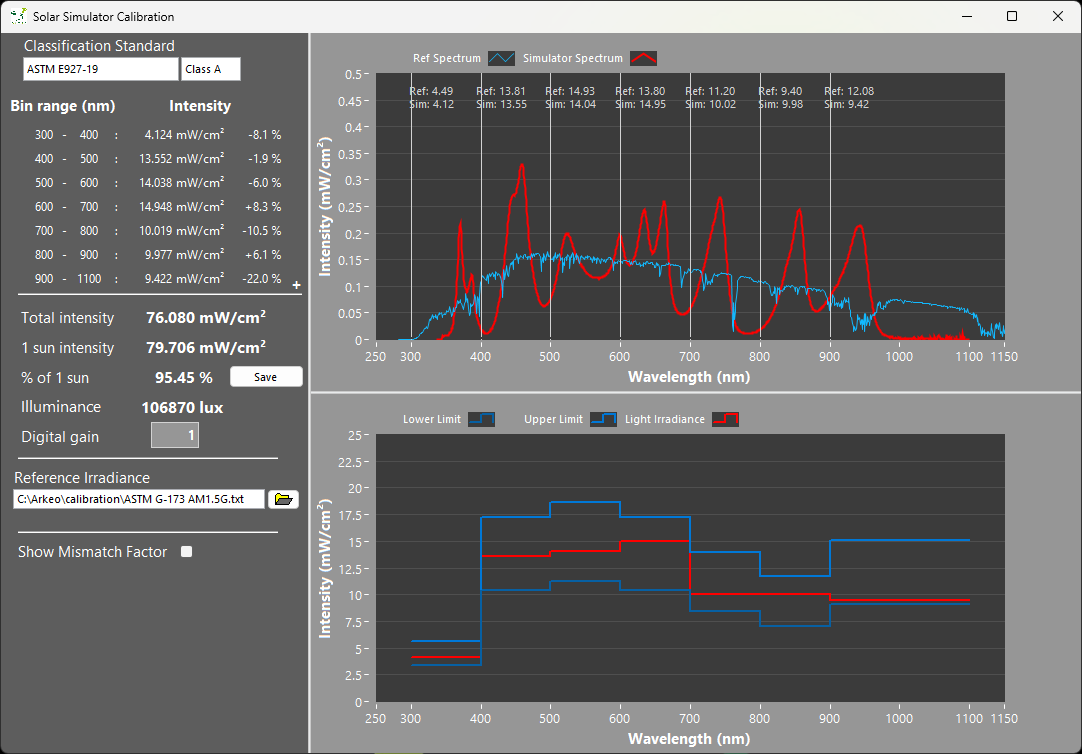

Spectral Classification
